תיאור
T 313 SIP מוניטור 7" פאלווינטק לינוקס
- Ultra-clear, stylish appearance
- Thin profile and small footprint
- 7-inch capacitive touch screen with energy saving mode
- Two-way audio communication with other units in the network
- Complies with SIP standard for easy integration in every SIP capable PBXes
- Powered by PoE or external source
- Support US or European electrical wall box mounting
T 313 SIP מוניטור 7" פאלווינטק לינוקס
מתאים למערכות הבאות :

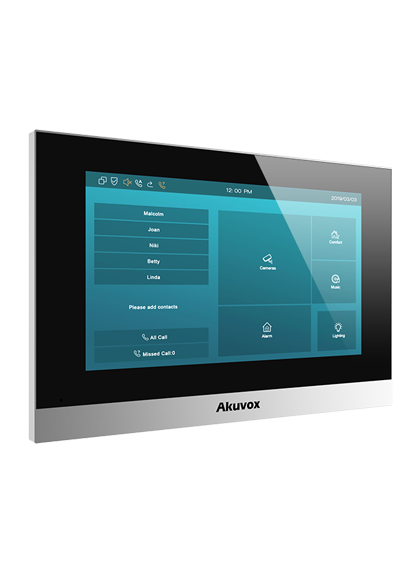

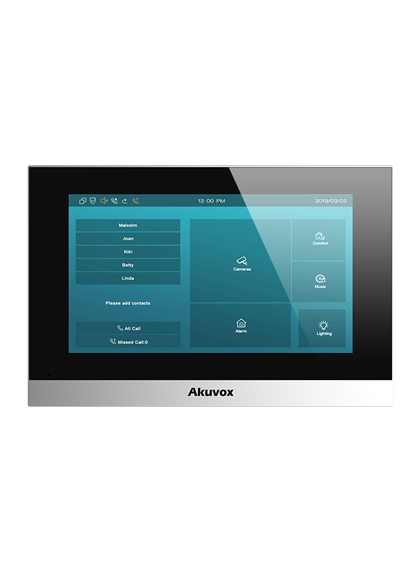

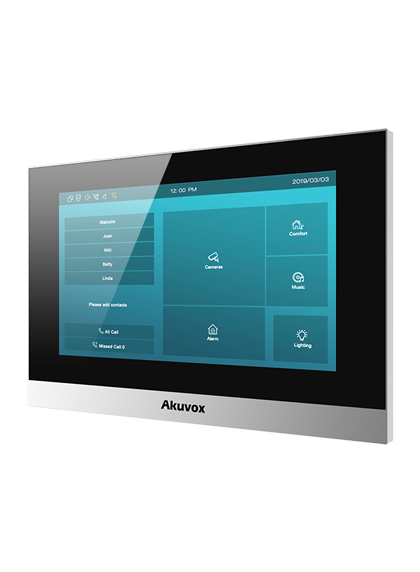

Compact but Powerful Indoor Monitor
T 313 is a 7” LINOX indoor monitor. With a compact body, it fits into limited space and offers a fat stack of features. It is typically used in apartments.
Physical & Power
- Front panel: Plastic
- RAM / ROM: 1GB / 8GB
- Display: 7 Inch TFT LCD
- Screen: 7 Inch capacitive touch screen
- Wi-Fi: IEEE802.11b/g/n, @2.4GHz
- RS485 port: Support
- Relay out: 1
- Bell in: 1
- I/O: 8
- Microphone: -58dB
- Speaker: 4Ω / 2W
- Ethernet ports: 2xRJ45, 10/100Mbps adaptive
- 802.3af Power-over-Ethernet
- 12V DC connector (if not using PoE)
- Installation: Wall-mounted & Desktop
- Dimension: 200.2×132.2×27.2mm
- Working Humidity: 10~90%
- Working Temperature: -10°C ~ +45°C
- Storage Temperature: -20°C ~ +70°C
Touch Screen Display
- Display Mode: Normally white, Transmissive
- LCD Size: 7inch (Diagonal)
- Resolution: 1024×600
- Contrast ratio: 800:1
- Luminance: 270 cd/m2
- Viewing Angle: 75° Left, 75° Right, 70° Upper, 75° Lower
- Touch Screen: Projected capacitive
Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711μ, G.729
- Broadband audio codec: G.722
- DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
- Echo Cancellation
- Voice Activation Detection
- Comfort Noise Generator
- Automatic Gain Control
VIDEO
- Streaming formats: H.263 & H.264
Networking
- Protocols support: IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP
Deployment & Maintenance
- Auto-Provisioning
- Web management portal
- Web-based packet dump
- Configuration backup / restore
- Firmware upgrade
- System logs (include door access logs)
Application Scenario
- Villas
- Apartment complexes
- Home automation systems
- Modern interiors
