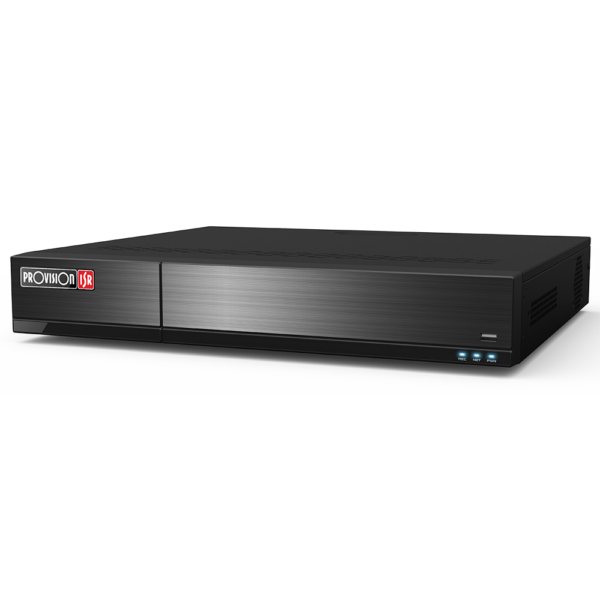

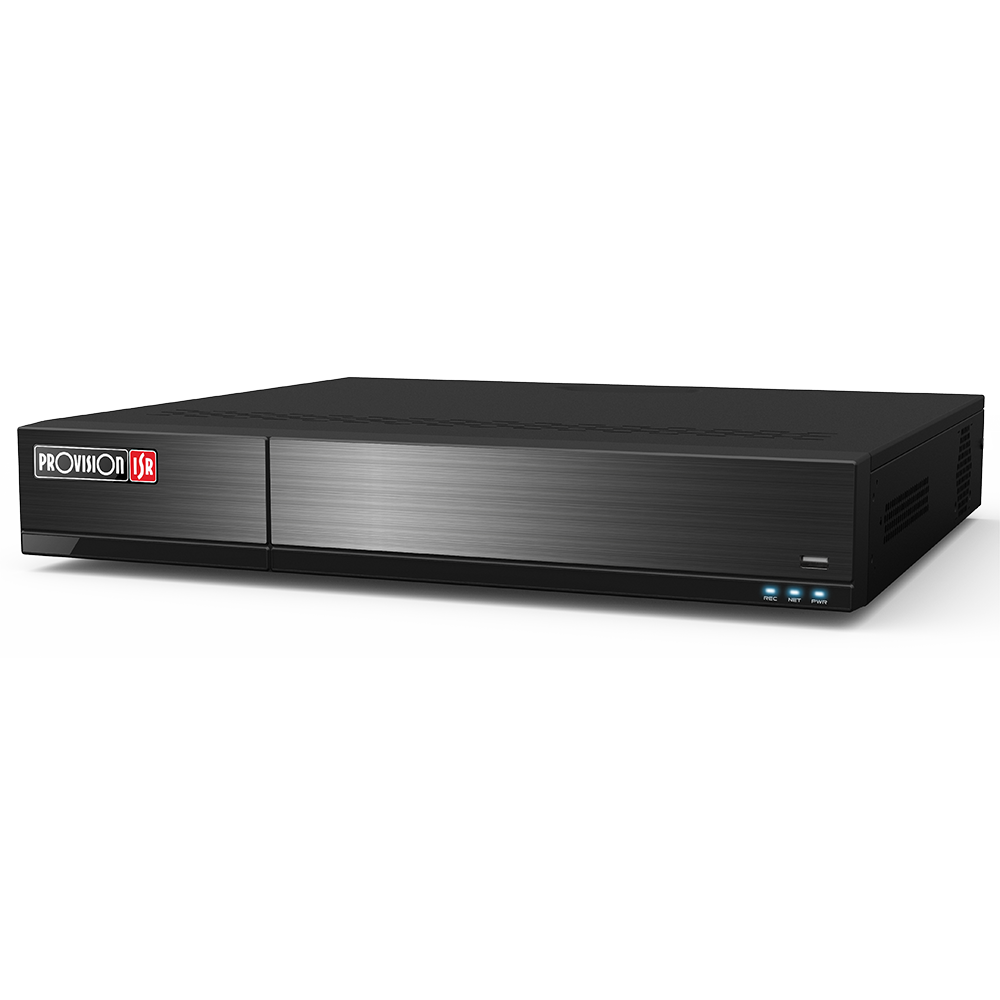

SH-4050A5N-8L מכשיר הקלטה היברידי DVR לעד 4 מצלמות אבטחה

• Video:

Input: Dynamic Hybrid

DVR Oriented: 4 Channel 4in1 HD Analog (BNC) + 2 Channel IP (Over Network)*

NVR Oriented: 0 Channel 4in1 HD Analog (BNC) + 6 Channel IP (Over Network)*

*Including all the HD Analog/IP variations available within the specified ranges.

Output: VGA: 1024×768/1280×1024/1920×1080

HDMI: 1024×768/1280×1024/1920×1080 / 3840×2160(4K)

CVBS (Can be used a spot)



• Recording:

HD Analog – 0-4 Channels



AHD/TVI: 8MP Lite

Max 12/15FPS Per Channel

Resolution: 1920×2160 (PAL/NTSC)



AHD/TVI: 5MP

Max 12FPS Per Channel

Resolution: 2560×1936 (PAL/NTSC)



AHD/TVI: 5MP Lite

Max 20FPS Per Channel

Resolution: 1280×1936 (PAL/NTSC)



AHD/TVI/CVI: 4MP

Max 12/15FPS Per Channel

4MP Resolution: 2560×1440 (PAL/NTSC)



AHD/TVI/CVI: 4MP Lite and lower

Max 25/30PS Per Channel

4MP Resolution: 1280×1440 (PAL/NTSC)

(Supported Resolutions: 1080P, 720P)



CVBS: 960H

Max 25/30FPS Per Channel

Resolution: 960×575 (PAL) / 960×480 (NTSC)



IP – 2-6 Channels



IP: 8MP and lower

Max 25/30FPS Per Channel

Resolution: 3840×2160 (PAL/NTSC)



• Playback:

4 Channel Simultaneously (Local)

6 Channel Simultaneously (Remote)



• Analytics:

For IP Channels: Line Crossing, Sterile Area, Object Monitoring, Camera Tampering and Smart Search.

For HD Analog Channels: Line Crossing, Sterile Area and Smart Search.



• Bandwidth:

Incoming: 16-40Mbps

Outgoing: 40Mbps

• Audio:

Input: 1 Channel (RCA) + IP Cameras inputs

Output: 1 Channel (RCA) + IP Cameras outputs

2 Way audio



• Storage:

1 x SATA (Up to 6TB)



• USB Port:

2 x USB2.0



• Network:

RJ-45: 100Mbps



• Alarm:

Input: IP Cameras inputs only

Output: IP Cameras outputs only



• PTZ / Keyboard:

1 x RS485

Protocol: CoC/Pelco D\P/Samsung/Visca (IP Over ONVIF)
