תיאור

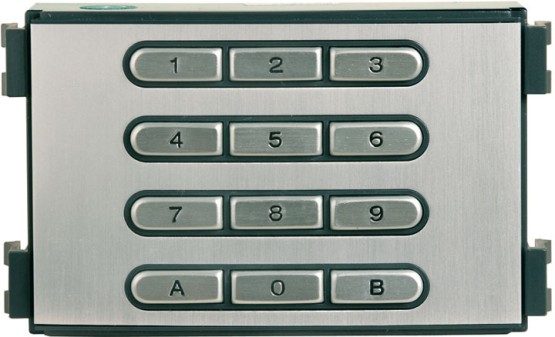

מודול קודן לפנל אינטרקום לוגיפון FERMAX

Standalone Power supply: 12 Vac/Vdc

Up to 100 user codes
– Code length 4 to 6 digits.
– Electric lock release activation by Relay2 A (NA,NC). Programmable 1 to 99 sec. or bistable.
– Exit button input.
– Free access button (trades) input.
– Open Collector auxiliary output (150 mA max) to indicate sabotage attempt or door
open/forced.
– Confirmation by keypad pulsation tone and acceptance or rejection of the code entered.
– Programming from the keypad by master code.
– Power supply 12 Vac / 12 Vdc
– Consumption: 6 mA (standby), 60 mA (active).
– Protection IPK5409

Weight: 0,455966 kg

Size of product when packed: 7,5x23x17,8 cm
